Blackmagic Design HyperDeck Studio HD Mini

  • Records Full-HD at up to 60p
  • HDMI and 3G-SDI Outputs
  • Choose your flavour of ProRes, DNxHD or H.264
  • H.264 can be recorded in 4:2:2, 10-Bit
  • Works with UHS-I and UHS-II SD Cards

€30,00

Related products

Take a compact broadcast-quality recording/playback deck to the set, studio, or rack-mounted with the Blackmagic Design HyperDeck Studio HD Mini. The 1U-high recorder is only 1/3 the width of a rack and runs on 100 to 240 VAC or an optional 12 VDC power supply, making it portable. With one 3G-SDI input, one HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, allowing simultaneous input, recording, and output/streaming. With support for reference and timecode inputs and outputs, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording from any camera with perfect sync for live and post-production work.

Two SD card slots allow you to record with virtually unlimited recording time, and the device also supports recording to USB media via the USB Type-C output. HyperDeck Studio HD Mini features front-panel button controls and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit via either the USB port or Ethernet at gigabit speed for faster deck control and file transfer via the RJ45 port. An integrated LCD on the front panel allows you to monitor the video.

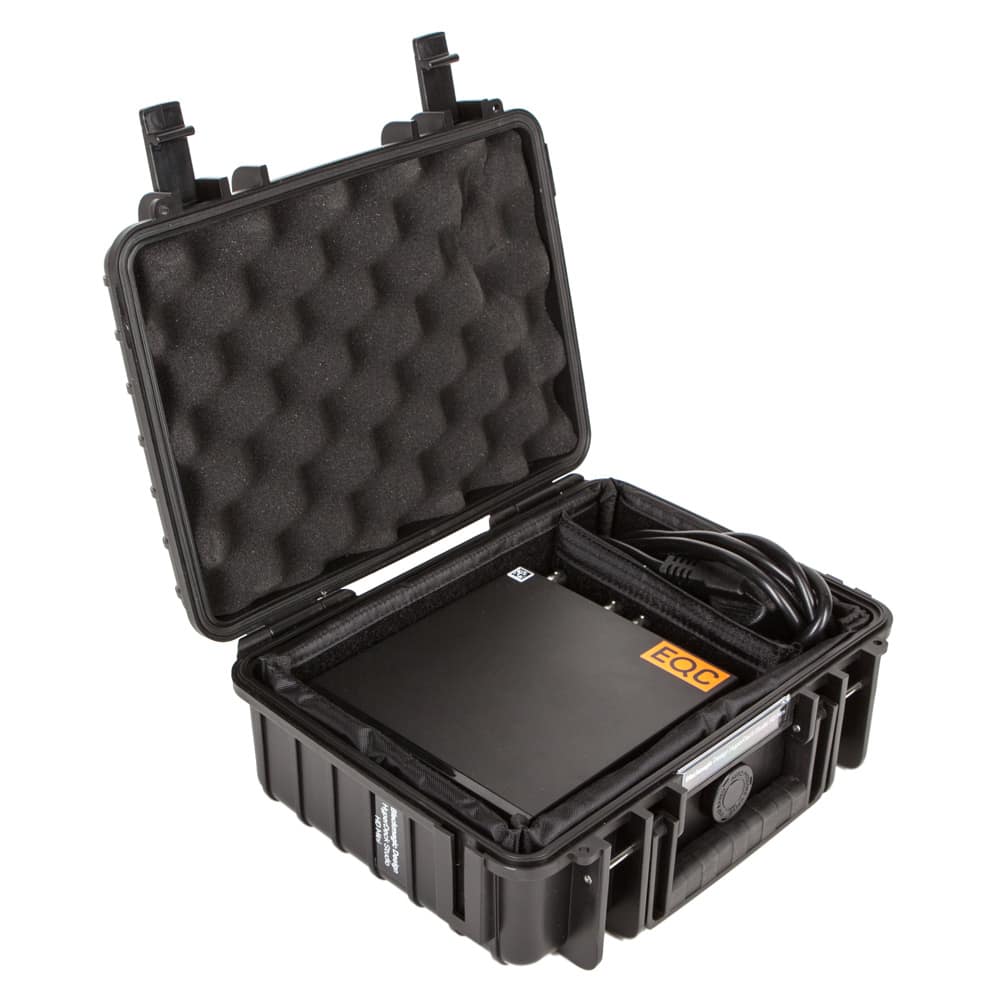

In the Case
  • HyperDeck Studio HD Mini
  • AC-cable
  • Hard case
Categories: ,

Blackmagic Design HyperDeck Studio HD Mini Specs

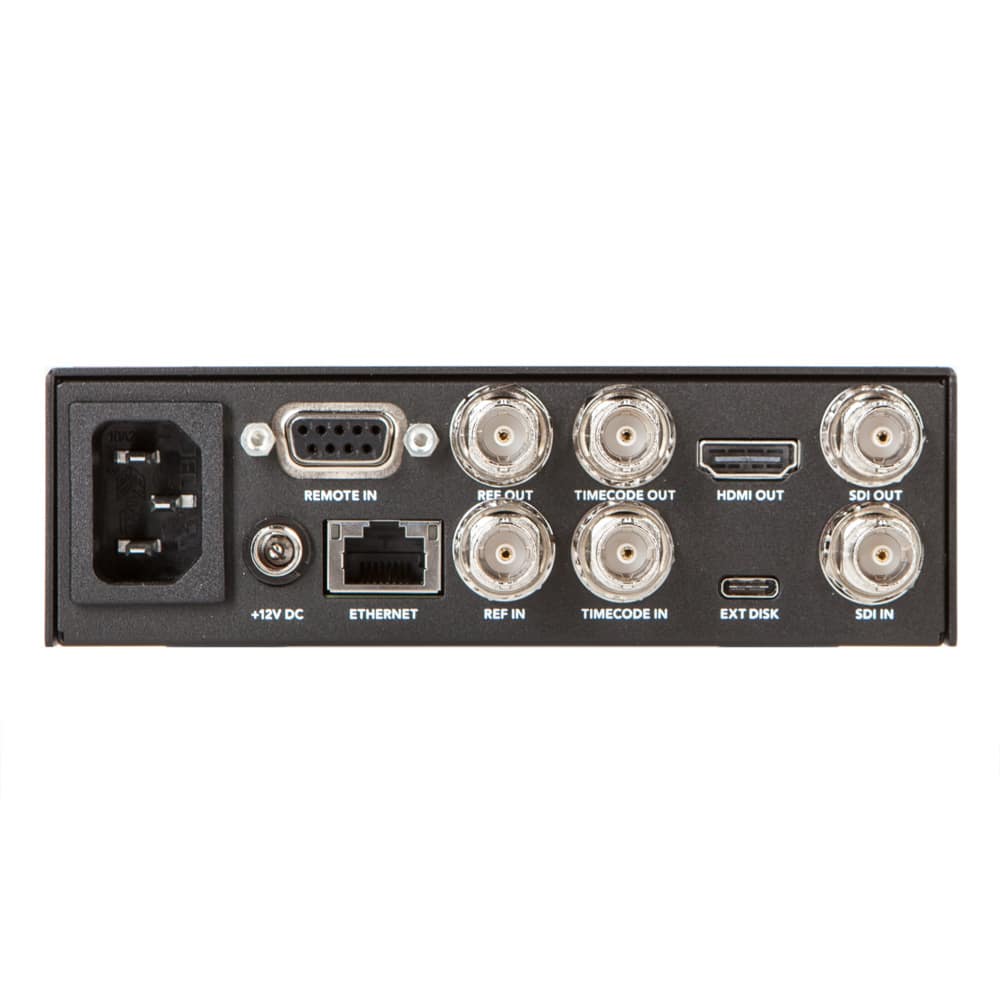

Connectivity

Video Input 1 x BNC, 3G-SDI
Video Output 1 x BNC, 3G-SDI
1 x HDMI Type A
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K)
Timecode In: 1 x BNC
out: 1 x BNC
Reference Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC
Audio Input None (Embedded Audio Only, 16 Channels)
Audio Output None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI)
Device Control 1 x RS-422 Deck Control Port on DB9 Female
Ethernet 1 x RJ45 for Remote Operation
Media Interface 2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+

Standards

Supported Resolutions 2K
2048 x 1080p: 30/29.97/25/24/23.98HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50SD
NTSC
PAL
SDI Compliance SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1
SDI Metadata Support HD RP188 and Closed Captioning CEA‑708
HDR Metadata Supported on SDI
Video Sampling 4:2:2 YUV
Color Depth 10-Bit
Color Space REC 601
REC 709
REC 2020
HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support Autodetection of SD and HD
Audio Sampling Television Standard 48 kHz, 24-Bit
Supported Codecs ProRes

  • HQ QuickTime
  • 422 QuickTime
  • LT QuickTime
  • Proxy QuickTime for Formats up to 1080p60



DNxHD

  • 220x
  • 220x MXF
  • 145
  • 145 MXF
  • 45
  • 45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264

  • SDI 4:2:2 10-Bit
  • High 4:2:0 8-Bit
  • Medium 4:2:0 8-Bit
  • Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

System Requirements

Operating System macOS: 10.15(Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit
General
Rack Height 1 RU
Power Supply AC
100 to 240 VAC, 50/60 HzDC
12 VDC; 1 x Locking 5.5 mm Barrel
Operating Temperature 5 to 50°C (41 to 122°F)
Storage Temperature -20 to 45°C (-4 to 113°F)
Relative Humidity 0 to 90% Non-Condensing
Dimensions 17.68 x 14 x 4.42 cm (6.96 x 5.51 x 1.74″)
Weight 0.82 kg (1.8 lb)
